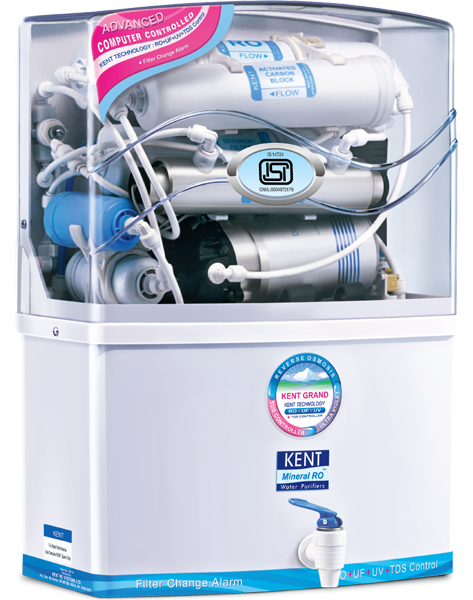

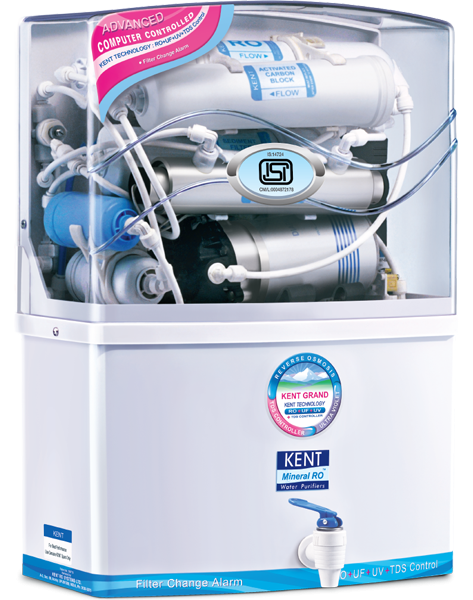

Kent Grand Water Purifier RO+UV+UF+TDS

SPECIFICATIONS

APPLICATIONS
Suitable for Purification of Brackish / Tap Water
PURIFICATION CAPACITY
Upto 15 LPH*
BODY MATERIAL
ABS Food Grade Plastic
MOUNTING
On the Wall
DIMENSIONS(MM)
L 400 W 250 H 520
INLET WATER PRESSURE/TEMP (MIN)
0.3 kg / cm2 or 4.267psi / 10°C
INLET WATER PRESSURE/TEMP (MAX)
3 kg / cm2 or 42.67psi / 35°C
FILTER CARTRIDGES
Sediment, Carbon Block Filter, UF & Post Carbon
AUTO-FLUSHING SYSTEM
-
UV LAMP WATTAGE
11 W
POWER CONSUMPTION
60 W
WEIGHT
9 kg
STORAGE CAPACITY
8 L
PURIFICATION PRODUCTION RATE
15 L/hr.
MAXIMUM DUTY CYCLE
75 L/day
MEMBRANE TYPE
Thin Film Composite RO
UF FILTER
Ultra Filtration Membrane
BOOSTER PUMP VOLTAGE
24 V DC
MAINS VOLTAGE
100 - 300 V~ AC / 50 Hz, 800mA
Installation, Warranty & After-Sales Service
Installation shall be done free of cost at customer's premises
Product warranty shall be effective from the date of installation. Warranty coverage period for different parts shall be as under:
All Electricals and Mechanical parts - 1 Year Consumables like RO Membrane & UF Membrane - 1 Year Consumables like Sediment Filter, Carbon Filter & Post Carbon Filter - 6 Months
After-Sales service shall be provided at customer's premises on demand basis
**Purification capacity tested on raw water with TDS level of 750 ppm at room temperature
